objecten spiegelen met sketchup

In SketchUp is er geen spiegelfunctie , ongetwijfeld is er een plugin die dit kan, als je nog niet zo thuis bent in het installeren van plugins, dan beschrijf ik hier een manier om toch een object te kunnen spiegelen.

De truc is dat je het met de scale functie doet met een -1 schaal waarde.

 selecteer het object dat je wilt spiegelen met de linkermuis toets

als het een component of groep is kan je 1x klikken.

Is het nog los kliK dan 3x snel achter elkaar op het object.

Activeer nu terwijl het object nog geselecteerd is de  SCALE functie

bij Menu- tools - scale.

Er verschijnt een blok met aangrijpingsblokjes om het object.

Kies een aangrijpings punt aan de zijde van de richting waarin je wilt schalen en toets -1 in de VCB onderin ( bij measurement) en druk op enter.

Als het goed is verspringt het object en is gespiegeld.

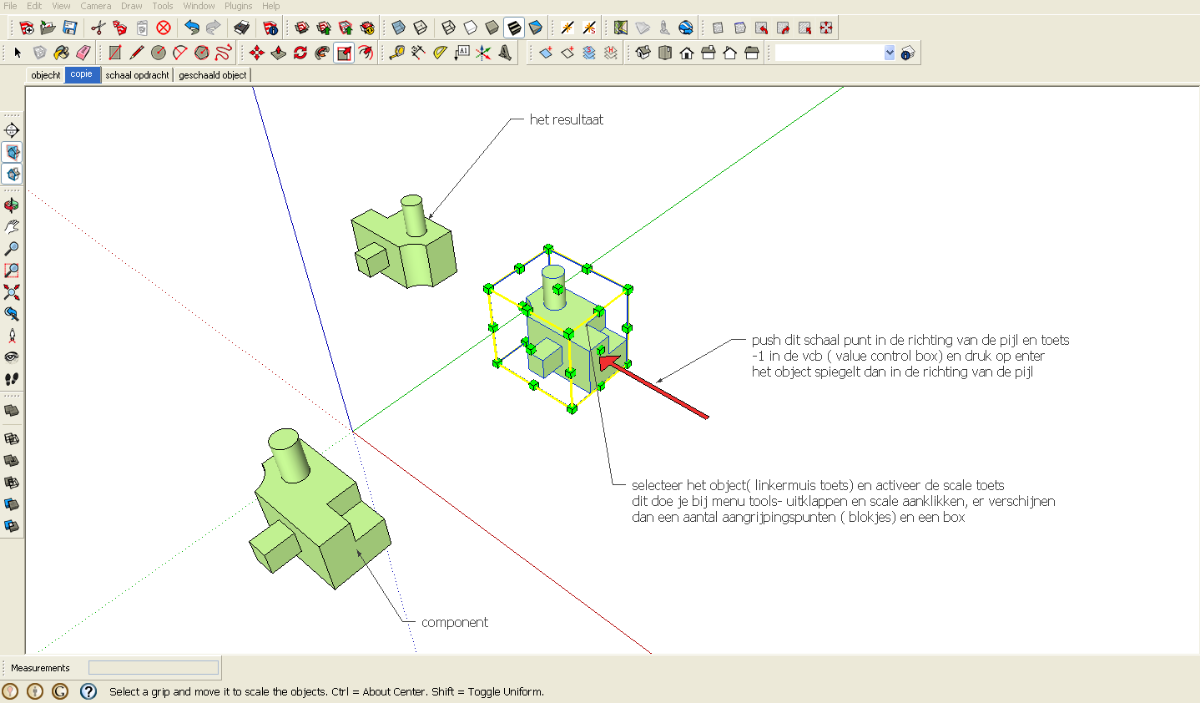

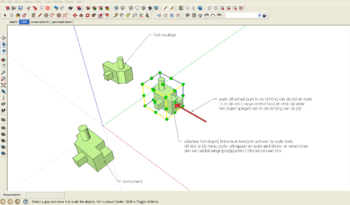

Kijk ook hieronder bij de scherm afbeelding.

Veel succes

Ronald Schouwink.





 Terug
Geplaatst: 12-01-2014 18:56:10
