dakkapel in 3D

sketchup praktijkvoorbeelden

Afgelopen week heb ik aan 2 leuke sketchup teken opdrachten gewerkt.
Een klant wilde graag zijn zolder 3 dimensionaal getekend hebben, om te kijken of een dakkapel van toegevoegde waarde kon zijn.
Ik heb de zolderverdieping die behoorlijk scheef was, ingemeten en vervolgens getekend met SketchUp.
Hierna heb ik de oude en nieuwe situatie in Layout Pro verder uitgewerkt en hiervan een PDF gemaakt.
Hier zie je het resultaat.


plattegrond winkel_1.jpg

2D tekenen met sketchup

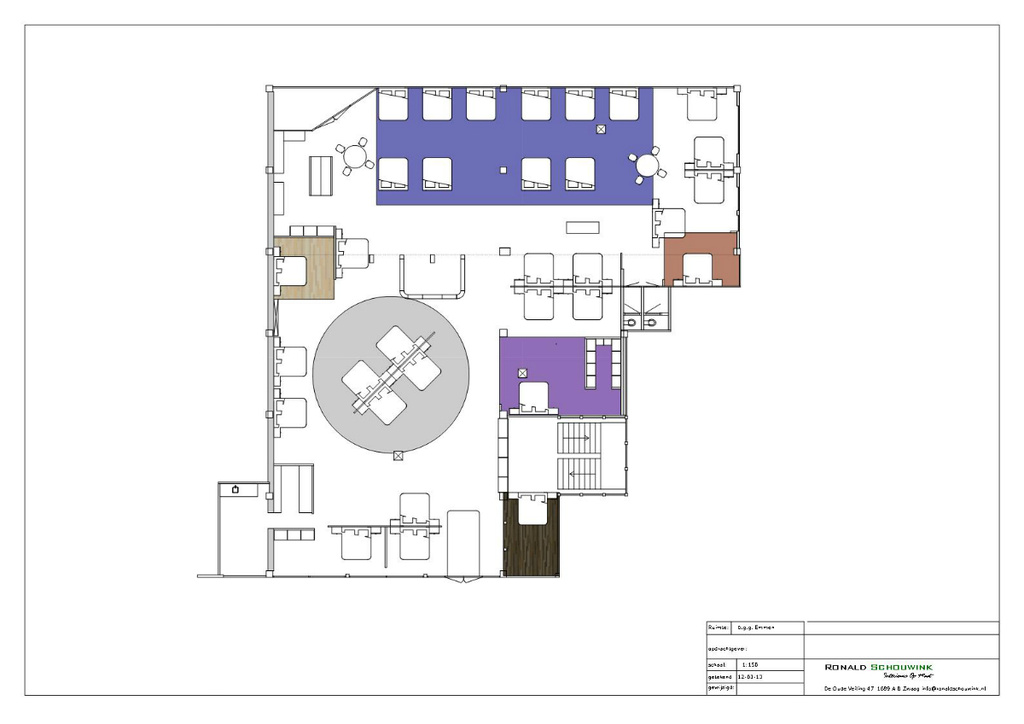

Een ander recent SketchUp project betreft een indelingsplan voor een winkelketen.
Voor hen heb ik de bestaande winkel ingemeten en getekend in SketchUp.
In dit voorbeeld zie je dat het ook mogelijk is om in 2D te tekenen.
Als je dit gaat doen zet dan je perspectief uit ,door bij het menu camera - parallel projectie aanvinken.
later kun je dit optrekken naar 3D.

Hier zie je het voorbeeld.

.
